1991 Van Dorn - 1500 Ton

1991 Van Dorn

1500 Ton Wide Platen | 260 oz

General Specifications

Year1991
Brand Van Dorn
Tonnage1500 Ton (Wide Platen)
Shot Size260 oz.
Region
  • USA
  • North America
Model Number1500H-RS-260-FLP
Typehorizontal

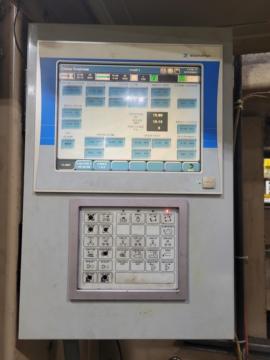

Options & UpgradesNew Sigmatek controller, 3 Core Pull Sequences, Air Blow
Machine Notes

Machine is available for release in November

Technical Specifications

Clamp
  • Hydraulic
Tie Bar Distance72 inches  x  52 inches
Platen Size 96 inchesx  76 inches
Daylight Min30 inches With ejector box and ram spacers
Daylight Max123" inches Without ejector box and ram spacers
Core Pull Sequences Yes 3 Sequences
Types of ControlsSigmatek
Voltage460
Dimensions 48.6 ftx 9.7 ftx 12.8 ft

Condition

Overall ConditionGood
Barrel & ScrewVery Good

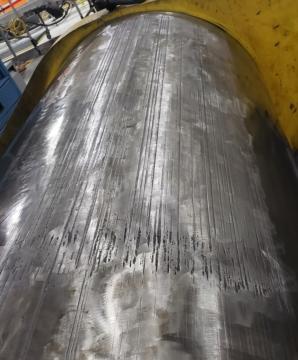

Condition NotesNew Sigmatek controller, ram cylinder is scored, small Leak on the ram cylinder shown in the Video
