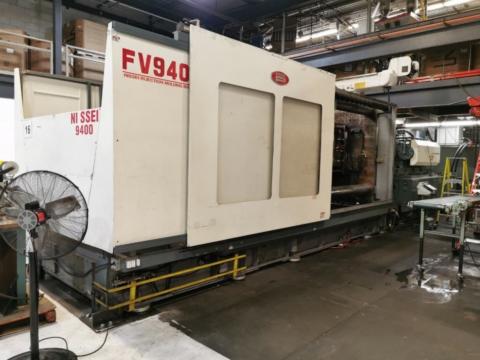

2002 Rebuilt in 2018 Nissei - 1437 Ton

2002 Nissei

1437 Ton | 297.10 oz oz

General Specifications

Year2002
Brand Nissei
Tonnage1437 Ton
Shot Size297.10 oz oz.
Region
  • Canada
  • North America
Model NumberFV9400
Typehorizontal
Options & UpgradesRebuilt in 2018, Rebuilt all cylinders ( Injection and Ram) welding/polishing change of seal, New 120 mm screw and barrel, new electrical wiring and insulation for the injection unit, new ceramic heater bands. changed thermocouples, pump calibration
Machine Notes

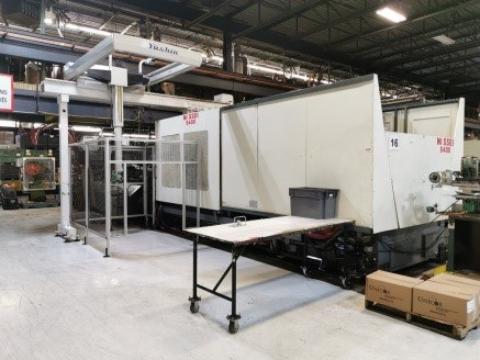

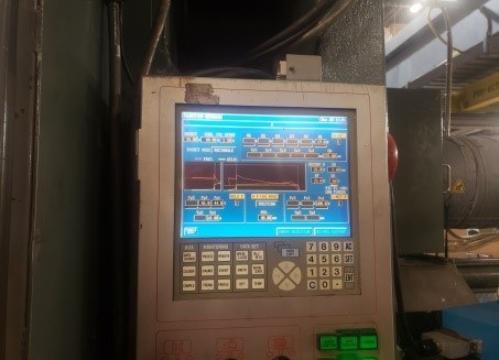

Includes Yushin VNR11-1300S Robot, Updated as well in 2017 new control and software. wrist and

all axis are servo driven

Technical Specifications

Clamp
  • Hydraulic
Tie Bar Distance57.09" inches  x  57.09" inches
Platen Size 79.53" inchesx  79.53" inches
Daylight Min27.56" inches
Daylight Max100.97" inches 49.21" max mold thickness
Types of Controls9300
Voltage460
Dimensions 39.92' ftx 9.83' ftx 9.25' ft

Condition

Overall ConditionExcellent
Barrel & ScrewExcellent
