2003 HPM - 3500 Ton

2003 HPM

3500 Ton | 1115 oz oz

General Specifications

Year2003
Brand HPM
Tonnage3500 Ton
Shot Size1115 oz oz.
Region
  • USA
  • North America
Model NumberFREEDOM 3500-1100
Typehorizontal
Options & Upgrades BI-METALLIC B&S, EJECTOR AND CORE ON THE FLY, SPRUE BREAK, DUAL CORE, DUAL AIR BLOW, MOTION NO MOTION, ROBOT INTERFACE, NOZZLE SHUTOFF, SIMULTANEOUS OPERATION OF CLAMP AND INJECTION UNIT, EXTENDED DAYLIGHT, 32 ZONE HOT RUNNER CONTROL
Machine Notes

TIE BARS CAN RETRACT 74.8" FOR MOLD LOADING

  • BOTH INJECTION CYLINDERS REFURBISHED
  • RESEALED SCREW MOTOR
  • 1 TONNAGE CYLINDER WAS REBUILT
  • 3 TONNAGE CYLINDER HAD BOLTS AND SEALS REPLACED
  • BOTH DIE HEIGHT MOTORS REPLACED
  • REFURBISHED V2 VALVE INJECTION SPEED CONTROL
  • REFURBISHED P2 INJECT PRESSURE CONTROL
  • ADD 3 MORE CORES
  • REPLACED PUMP # 2 , 3, 4, 5, 6
  • REPLACED BOTH SLIDE BANS
  • REPLACED TONNAGE PRESSURE TRANSDUCER
  • REPLACED MOLD HEAT TEMPERATURE CARD

Technical Specifications

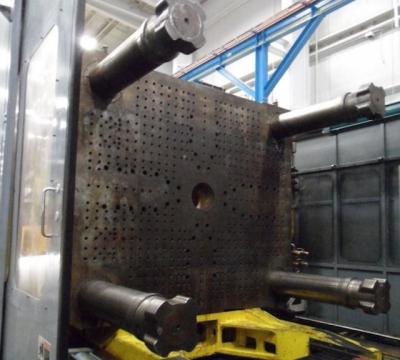

Clamp
  • Hydraulic
Tie Bar Distance88.98 inches  x  88.98 inches
Platen Size 127.95 inchesx  127.95 inches
Daylight Min33.46 inches
Daylight Max161.24 inches

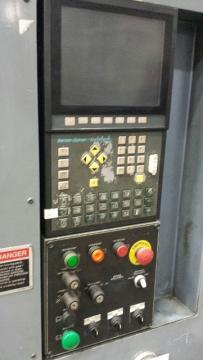

Types of ControlsCOMMAND 4500 COLOR
Voltage460
Dimensions 60.35' ftx 16.06' ftx 13.25' ft

Condition

Overall ConditionExcellent
Barrel & ScrewExcellent
Material RunPP,PS
Condition NotesRECENTLY INSTALLED BRAND NEW SCREW, RE-SLEEVED BARREL, LIKE NEW NEW CHECK RING, INJECTION CYLINDER COMPLETE REBUILD, NEW DIE HEIGHT MOTORS, ALL TONNAGE CYLINDER BOLTS REPLACED, BOTTOM & TOP OPERATOR COMPLETE TONNAGE CYLINDER REBUILD
