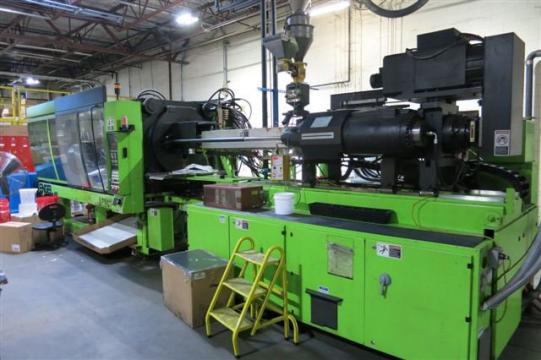

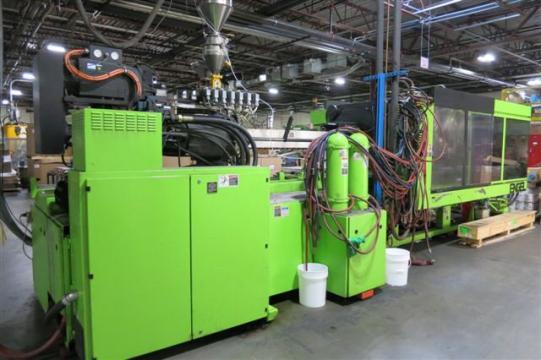

2003 Engel - 400 Ton

2003 Engel

400 Ton | 50.5 oz oz

General Specifications

Year2003
Brand Engel
Tonnage400 Ton
Shot Size50.5 oz oz.
Region
  • USA
  • North America
Model Number
Typehorizontal
Options & UpgradesAuxiliary By Pass Oil Filtration Pkg., Air Blow W/Timer & 1/2" 3 way Valve (4), Accumulator Package Increased Inj Pressure, Bi-Metallic B&S, Hi Flow Servo Valve and Hi Flow Clamp Manifold, Electric Screw Drive, Closed Loop Feed Throat Cooling, Robot Int

Technical Specifications

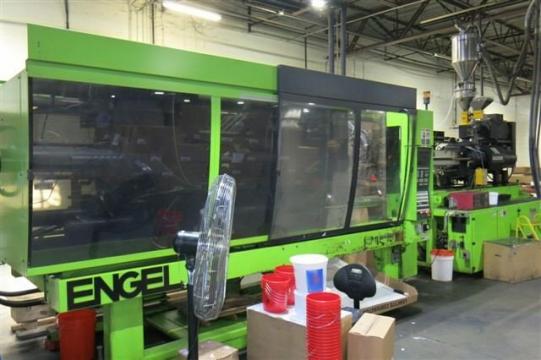

Clamp
  • Double Toggle
Tie Bar Distance33.07" inches  x  33.07" inches
Platen Size 47.24" inchesx  47.24" inches
Daylight Min11.81" inches
Daylight Max61.50" inches 33.94" Max Mold Height
Core Pull Sequences Yes

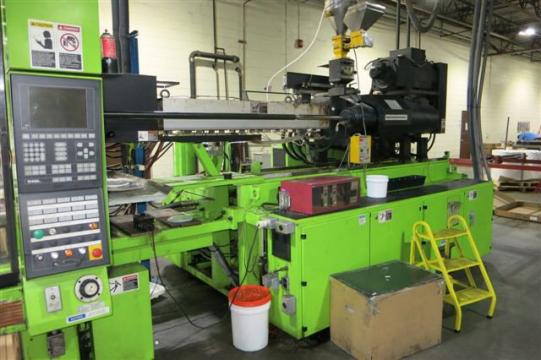

Types of ControlsCC100
Voltage460
Dimensions 343" inchesx 89" inchesx 102" inches

Condition

Overall ConditionVery Good
Barrel & ScrewExcellent
Hours47,000
Material RunPP/PS
