Quote Request

2017 Mold Carrier Press for Carbon Fiber HT RTM High Temperature Resin Transfer Molding Krauss-Maffei - 1000 Ton

* - required field


2017 Krauss-Maffei

1000 Ton 1124 US Ton | oz

General Specifications

Brand Krauss-Maffei
Tonnage1000 Ton (1124 US Ton)
Shot Sizeoz.
  • Asia
Model NumberKrauss-Maffei FT-MX-H-25-16-10000
Options & UpgradesCOMPOSITE INJECTION ( fiber plastic reinforcement FRP and Carbon fibers), Like New Just Sample Products Dosing system RTM – RS 8 / 4 Thermo
Machine Notes

High Temperature Resin Transfer Molding HT RTM

COMPOSITE INJECTION ( fiber plastic reinforcement FRP and Carbon fibers )

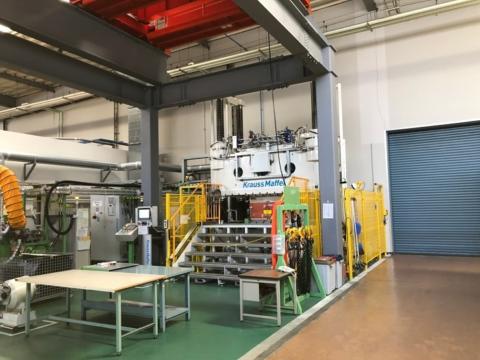

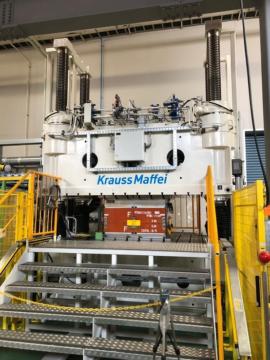

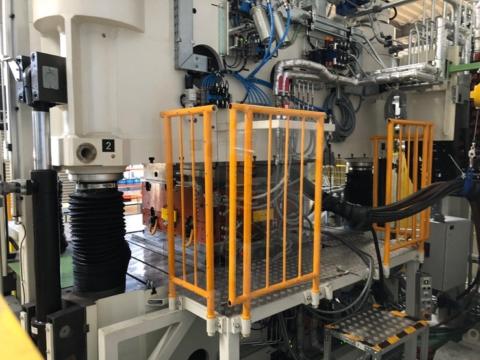

Krauss Maffei (Germany) Model-FT MX-H-25-16-10000. 2017 Mold-Carrier-Press for carbon fiber.

(For the fusion of carbon fiber products).

The production process creates lightweight, crash-resistant automotive components by

combining thermoplastic injection-molded parts with thermoformed parts made of continuous

fiber-reinforced thermoplastic sheets.

Typical applications include seat shells and backs, instrument panel carriers, box covers,

side impact protection pieces, and semi-structural parts.

Technical Specifications

  • 2-Platen
Platen Size 98.43" inchesx  62.99" inches
Daylight Min19.69" inches
Daylight Max78.74" inches
Types of ControlsSiemens TP1500 control
Dimensions 6.0 m M  x 4.0 m M  x 5.3 m M


Overall ConditionLike New
Barrel & ScrewLike New
HoursJust Samples
Material Runfiber plastic reinforcement FRP and Carbon fibers
