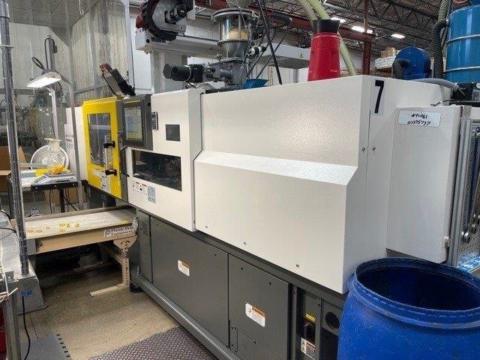

2018 Cincinnati Roboshot

138 Ton Increased from 110 ton | 6.02 oz

Request Quote

General Specifications

Year 2018
Brand Cincinnati Roboshot
Tonnage 138 Ton (Increased from 110 ton)
Shot Size 6.02 oz.
  • USA
  • North America
Model Number S-110A
Type horizontal
Options & Upgrades Increased Tonnage from 110 ton to 138 ton, 3 Stage Air Eject, Wired for Core Pull requires power pack, Euromap 67 robot interface, Insulated Heater Bands
Machine Notes

Extremely Well Maintained

Technical Specifications

  • Double Toggle Electric
Tie Bar Distance 18.1 inches  x  16.1 inches
Platen Size 26 inches x  24 inches
Daylight Min 8.66 inches
Daylight Max 38.91 inches 24.41" Max Mold Height
Core Pull Sequences Yes Wired for Core Pull
Types of Controls FANUC Series 31i-MODEL B
Voltage 220
Dimensions 14.71 ft x 3.98 ft x 5.76 ft


Overall Condition Like New
Barrel & Screw Like New
Hours 7,751
Material Run PP, PS, PE, Nylon, ABS
Condition Notes Extremely Well Maintianed
