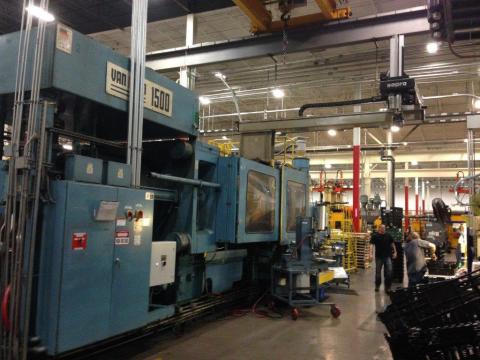

1995 Van Dorn - 1500 Ton

1995 Van Dorn

1500 Ton Wide Platen | 400 0z oz

General Specifications

Brand Van Dorn
Tonnage1500 Ton (Wide Platen )
Shot Size400 0z oz.
  • USA
  • North America
Model Number1500HP-400
Options & UpgradesExtended Tie Bar Distance, two core pull sequences. One on stationery platen, one on moving platen. Both can pull on open, stop, on the fly, and close. Ram rebuilt, inner and outer ring glands replaced, ram repacked. Injection unit serviced as well.
Machine Notes

Extended tie bar, Wide Platen,

Technical Specifications

  • Hydraulic
Tie Bar Distance52 inches  x  72 inches Extended Tie Bar Option
Platen Size 96 inchesx  76 inches
Daylight Min30 inches
Daylight Max90 inches /123"
Core Pull Sequences Yes
Types of ControlsPathfinder 4500
Dimensions 52.8 ftx 9.7 ftx 12.8 ft


Overall ConditionVery Good
Barrel & ScrewVery Good
Material RunPP/PS

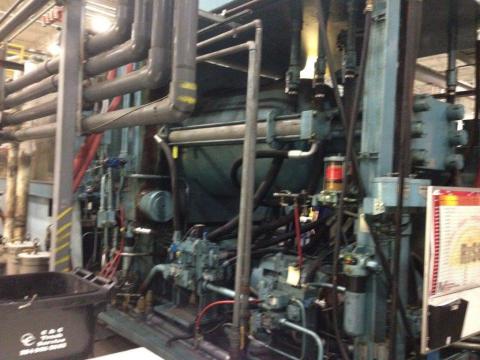

Condition NotesThe ram has been rebuilt the inner and outer ring glands replaced and the ram has been repacked. The injection unit has been gone over as well.
