2003 UBE

1000 Ton | 160 oz

Request Quote

General Specifications

Year 2003
Brand UBE
Tonnage 1000 Ton
Shot Size 160 oz.
Region
  • USA
  • North America
Model Number UM 1000
Type horizontal
Options & Upgrades Updated controller to e-Humma controls, Includes a 2024 Sepro 7X-45 LD 5 Axis Robot, Horizontal Stroke (X) 5000 mm, Demold Stroke (Y) 1300 mm, Vertical Stroke (Z) 2200 mm, Robot Payload 30 kg or 66 pounds, Several updates listed in machine notes
Machine Notes

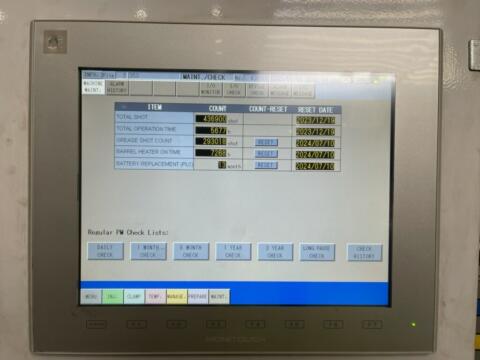

Control upgrade: Includes New Circuit Breaker, replaced with a new Mitsubishi PLC, e-Humma Controller, Replace The Operator Panel With A New Operator Panel, Including New Control Switches And Screen, Screen Sets Have Storage For 128 Mold set ups, Replace The Position Sensors With The Linear Position/Pressure/Tonnage Transducers.

Heater Circuit: Replace Magnetic Contactors With Solid State Relays, Replace Fuses With New Fuses And Fuse Holders (Enclosed Where Applicable), Replace Current Transformers, Renew Heater Wiring Inside The Control Panel,

ABSOCODERS: Replaced Die Height and Screw RPM Absocoders, New Closed-Loop Clamp Control For Dramatically Improved Clamp Speed And Positional Accuracy, Replace Core Solenoid Valve, Replace Mold Eject Valve, Replace Sol-WE, Replace Loading Valves (P2, P4, & P4), Replace Sol-N1, Replace Sol-D2, Replace Sol-E1, Replace Sol-DH, Replace Pump #4, Replace And Tension Clamp Machine Base Corbel Liners, Replace Moving Platen Liners, Replace Clamp Die Lock Cylinder, Check And Adjust Clamp Machine Base Level Condition, Check And Adjust Machine Hydraulic Pressure And Speed Performance As Needed

Alkegen Heater band system: New Closed-Loop Clamp Control For Dramatically Improved Clamp Speed And Positional Accuracy, Replace Core Solenoid Valve, Replace Mold Eject Valve, Replace Sol-WE, Replace Loading Valves (P2, P4, & P4), Replace Sol-N1, Replace Sol-D2, Replace Sol-E1, Replace Sol-DH, Replace Pump #4, Replace And Tension Clamp Machine Base Corbel Liners, Replace Moving Platen Liners, Replace Clamp Die Lock Cylinder, Check And Adjust Clamp Machine Base Level Condition, Check And Adjust Machine Hydraulic Pressure And Speed Performance As Needed, Alkegen Heater band system TCS-1003624 - DES-10681.

Technical Specifications

Clamp
  • Toggle
Tie Bar Distance 60 inches  x  50 inches
Platen Size 76.9 inches x  66.9 inches
Daylight Min 15.5 inches
Daylight Max 99.7 inches 48.7" Maximum Mold Height
Core Pull Sequences Yes Dual

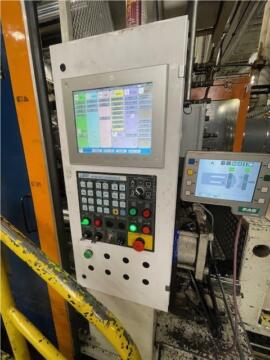

Types of Controls New e-Humma Controller
Voltage 460

Condition

Overall Condition Good
Barrel & Screw Very Good
