General Specifications
| Year | 2017 |

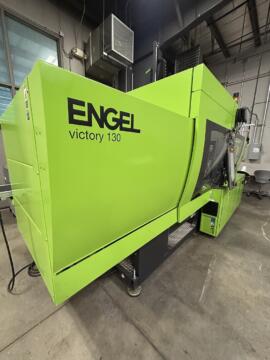

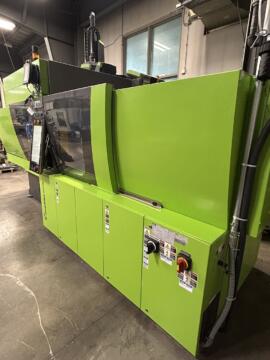

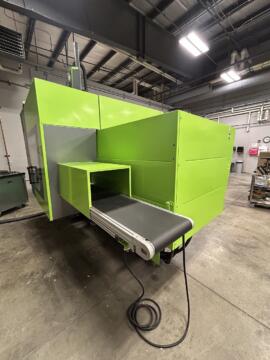

| Brand | Engel TieBarLess Electric ECODRIVE Only 227 Training Hours |
| Tonnage | 135 Ton |
| Shot Size | 10.53 oz. |
| Region |
|
| Model Number | VC 650/130 HY-TECH US |
| Type | horizontal |

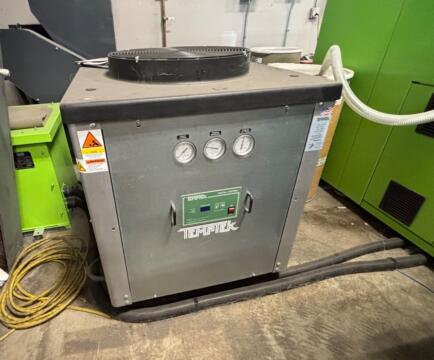

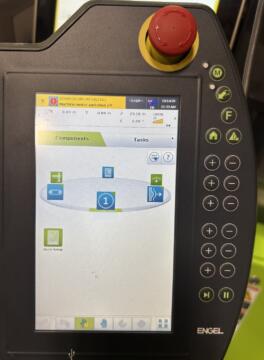

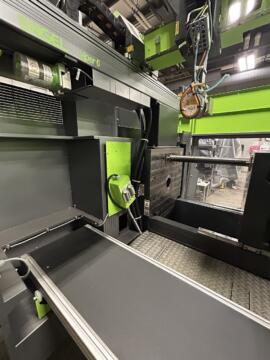

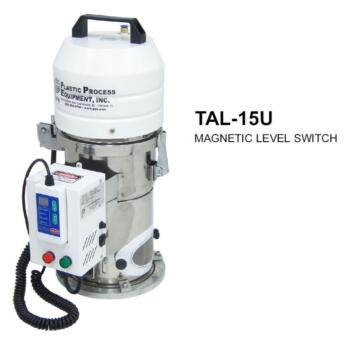

| Options & Upgrades | Includes a Viper 6 Robot RC300 Integrated, TAL 15U loader, Temptek CF-3A-21HF air cooled chiller |

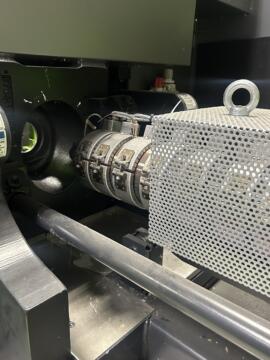

| Machine Notes | Min/Max mold height and Max Daylight increased by 200 mm, M3 barrel elongated Bi-metallic , S8 barrier screw, geometry MBS with shear mixing head, corrosion resistant barrelhead, ceramic heater bands, Hydraulic package ECODRIVE, iQ weight control Software for monitoring melt volume and viscosity variations. Closed loop control of injected melt volume by automatic adaptation of injection speed Profile, switch-over point and holding pressure profile, hydraulic corepull on moving platen, pneumatic valve 5/2-ways both platens for air blow, Program for second blow time for each air valve, 4 zone mold heating control, pneumatic valve gate control, extended safety gate for integrated robot, two-piece open nozzle (with removable tip), Quick shutoff valve. Original Order Sheet Available with Further Details. |
Technical Specifications
| Clamp |
|
| Tie Bar Distance | Tiebarless inches x Tiebarless inches |

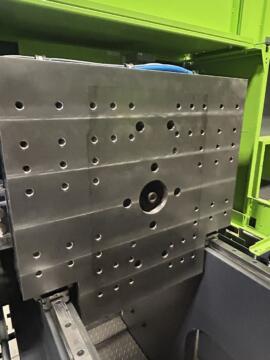

| Platen Size | 29.13 inches x 26.78 inches |
| Daylight Min | 19.68 inches Minimum Daylight increase 200mm |
| Daylight Max | 39.37 inches Maximum/Minumum Mold Height and Daylight Increased by 200mm |
| Core Pull Sequences | Yes |
| Types of Controls | CC300 iQ |
| Voltage | 480 |
| Dimensions | 16.55 ft x 4.95 ft x 6.56 ft |
Condition
| Overall Condition | Like New |
| Barrel & Screw | Like New |

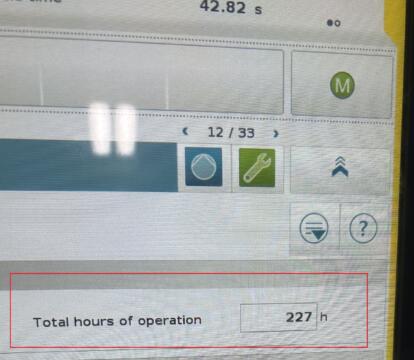

| Hours | 227 |
| Material Run | PS/PP |
| Condition Notes | Like New Condition Used as a Training Machine for New Employees |
