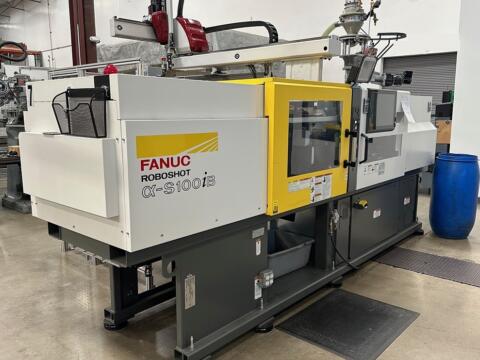

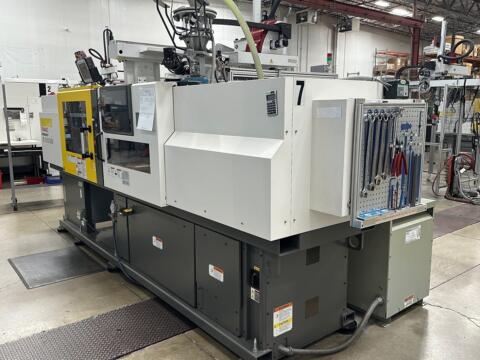

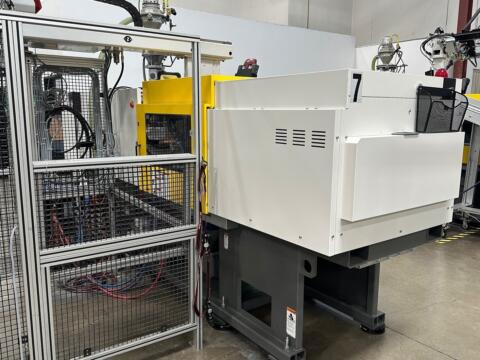

2021 Cincinnati Roboshot Only 5,298 Hours
138 Ton 138 Ton (Increased from 110 ton) | 1.9 oz
General Specifications
Year | 2021 |
Brand | Cincinnati Roboshot Only 5,298 Hours |
Tonnage | 138 Ton (138 Ton (Increased from 110 ton)) |
Shot Size | 1.9 oz. |
Region |
|
Model Number | ALPHA -S110iB |
Type | horizontal |
Options & Upgrades | Increased Tonnage from 110 ton to 138 ton, 3 Stage Air Eject, Wired for Core Pull requires power pack, Euromap 67 robot interface, Insulated Heater Bands. |
Technical Specifications

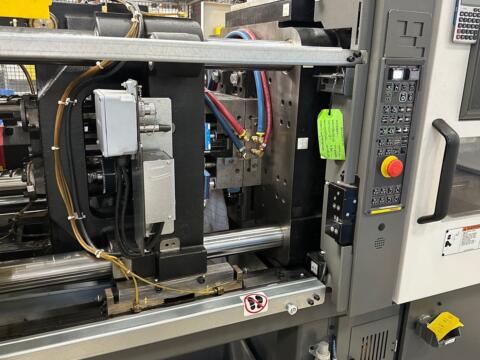

Clamp |
|
Tie Bar Distance | 18.1 inches x 16.1 inches |
Platen Size | 26 inches x 24 inches |
Daylight Min | 8.66 inches |
Daylight Max | 38.19 inches 24.41" Maximum Mold Height |
Core Pull Sequences | Yes Wired for Core Pull |
Types of Controls | α-SiB series with PANEL iH Pro |
Voltage | 220 |
Dimensions | 14.71 ft x 3.98 ft x 5.76 ft |
Condition
Overall Condition | Excellent |
Barrel & Screw | Like New |
Hours | Only 5,298 |
Material Run | PP, PS, PE, Nylon |
Condition Notes | Machine is in "Like New Condition" Only 5,298 hours, Machine has been extremely well maintained, Tonnage increased from 110 ton to 138 ton by Cincinnati Milacron |
