2021 Cincinnati Roboshot Only 3,967 Hours
138 Ton 138 Ton (Increased from 110 ton) | 3.4 oz
General Specifications
| Year | 2021 |
| Brand | Cincinnati Roboshot Only 3,967 Hours |
| Tonnage | 138 Ton (138 Ton (Increased from 110 ton)) |
| Shot Size | 3.4 oz. |
| Region |
|
| Model Number | ALPHA -S110iB |
| Type | horizontal |
| Options & Upgrades | Increased Tonnage from 110 ton to 138 ton, 3 Stage Air Eject, Wired for Core Pull requires power pack, Euromap 67 robot interface, Insulated Heater Bands. |
Technical Specifications

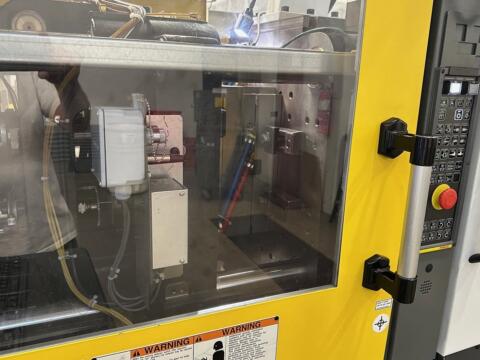

| Clamp |
|
| Tie Bar Distance | 18.1 inches x 16.1 inches |
| Platen Size | 26 inches x 24 inches |
| Daylight Min | 8.66 inches |
| Daylight Max | 38.19 inches 24.41" Maximum Mold Height |
| Core Pull Sequences | Yes Wired for Core Pull |

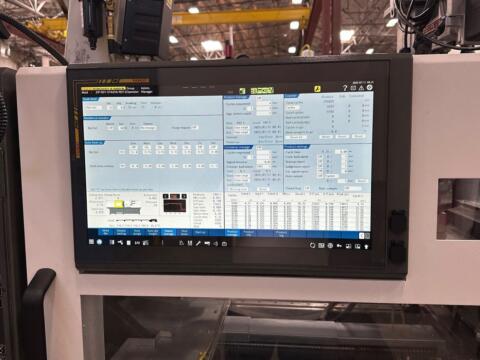

| Types of Controls | α-SiB series with PANEL iH Pro |
| Voltage | 220 |
| Dimensions | 14.7 ft x 3.98 ft x 5.76 ft |
Condition
| Overall Condition | Excellent |
| Barrel & Screw | Like New |
| Hours | 3,967 |
| Material Run | PP, PS, PE, Nylon |
| Condition Notes | Machine is in "Like New Condition" Only 3,967 hours, Machine has been extremely well maintained, Tonnage increased from 110 ton to 138 ton by Cincinnati Milacron |
