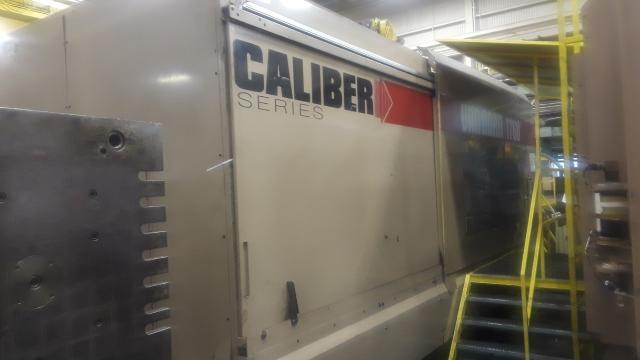

![1998 1760 ton Van Dorn, 260 oz Caliber](https://elitemachinerysystems.com/public/assets/uploads/injection-molding/_AUTOx360_fit_center-center_75_none/19981760tonVDCaliberClampSide.jpg)

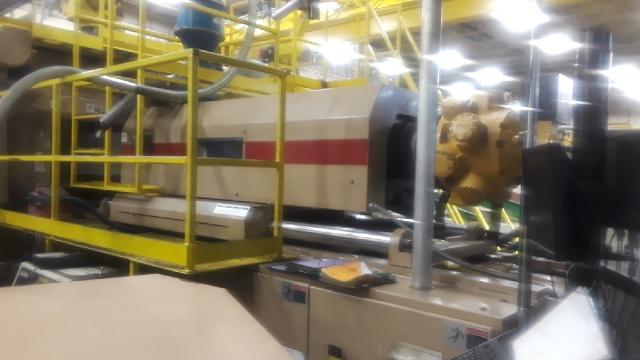

![1998 1760 ton Van Dorn, 260 oz Caliber](https://elitemachinerysystems.com/public/assets/uploads/injection-molding/_AUTOx360_fit_center-center_75_none/19981760tonVDCaliberInjSide.jpg)
Sold
1998 Van Dorn
1760 Ton | 260 oz
General Specifications
Year | 1998 |
Brand | Van Dorn |
Tonnage | 1760 Ton |
Shot Size | 260 oz. |
Region |
|
Model Number | 1760CC260 |
Type | horizontal |
Technical Specifications
Clamp |
|
Tie Bar Distance | 72.0" inches x 55.1" inches |
Platen Size | 97.6" inches x 82.7" |
Daylight Min | 28.5" inches |
Daylight Max | 123.4" inches 67.9 Max Mold height |
Core Pull Sequences | Yes |
Types of Controls | Pathfinder |
Voltage | 460 |
Dimensions | 40.0' ft x 13.4' ft x 10.6' ft |
Condition
Overall Condition | Very Good |
Barrel & Screw | Excellent |
Material Run | PP, PS |
