Sold

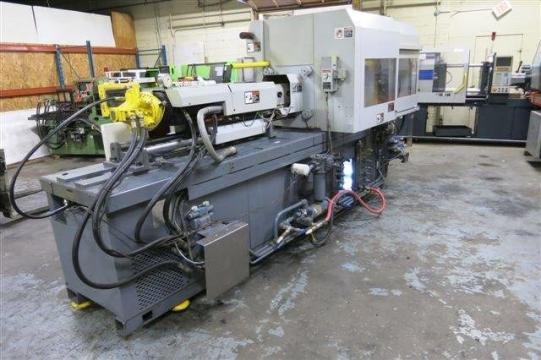

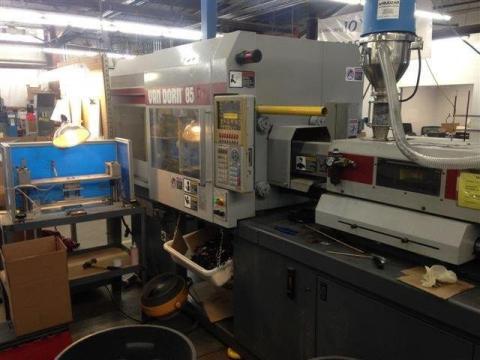

1998 Van Dorn
85 Ton | 5 oz
General Specifications
| Year | 1998 |
| Brand | Van Dorn |
| Tonnage | 85 Ton |
| Shot Size | 5 oz. |
| Region |
|
| Model Number | 85HT-5 |
| Type | horizontal |
| Options & Upgrades | Core pull, motion no motion,. Robot interface, air blow. 6 configurable inputs and outputs |
Technical Specifications
| Clamp |
|
| Tie Bar Distance | `6" inches x 13.6" inches |
| Platen Size | 22.8" inches x 20.4" inches |
| Daylight Min | 4" inches |
| Daylight Max | 28" inches 16" Max Mold Height |
| Core Pull Sequences | Yes |

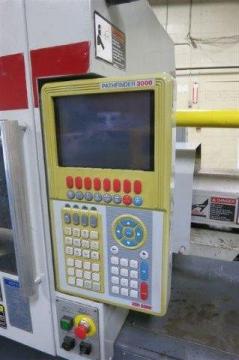

| Types of Controls | Pathfinder 3000 |
| Voltage | 460 |
| Dimensions | 15' ft x 4.3' ft x 6.6' ft |
Condition
| Overall Condition | Very Good |
| Barrel & Screw | Very Good |
| Material Run | PP, PS |
