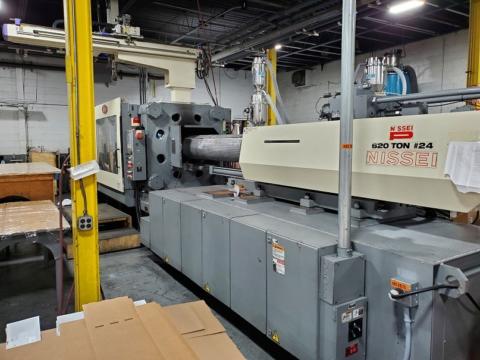

2002 Nissei

616 Ton FV9000 | 132 oz

Request Quote

General Specifications

Year 2002
Brand Nissei
Tonnage 616 Ton (FV9000)
Shot Size 132 oz.
Region
Model Number FV9000
Type horizontal
Machine Notes

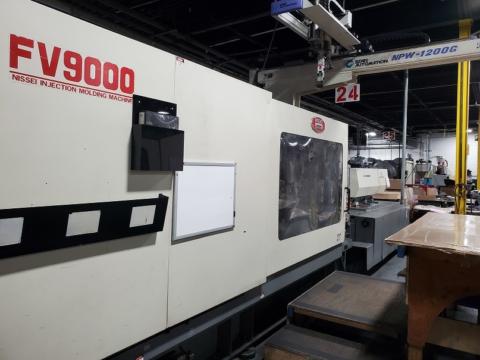

Star NPW-1200G Robot is also available with the machine

Technical Specifications

Clamp
  • Hydraulic
Tie Bar Distance 38.19 inches  x  38.19 inches
Platen Size 53.54 inches x  52.54 inches
Daylight Min 15.75 inches
Daylight Max 62.9 inches 35.43" max mold height

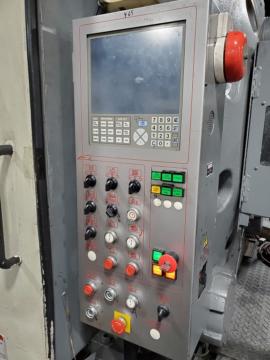

Types of Controls NC9300T
Voltage 460
Dimensions 31.98 ft x 6.92 ft x 7.28 ft

Condition

Overall Condition Very Good
Barrel & Screw Very Good
Hours 46,285
Material Run ABS, HIPS, PC PPS Acrylic
