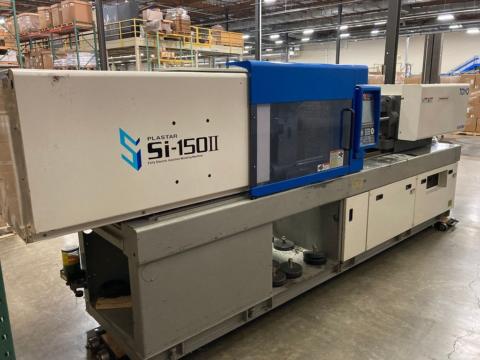

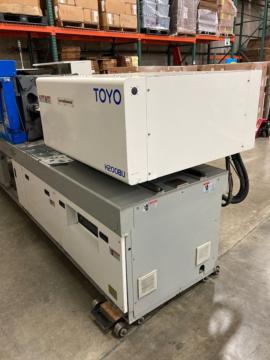

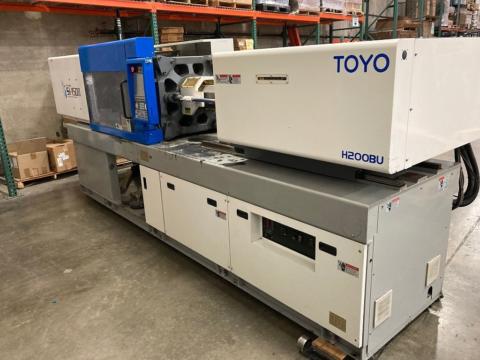

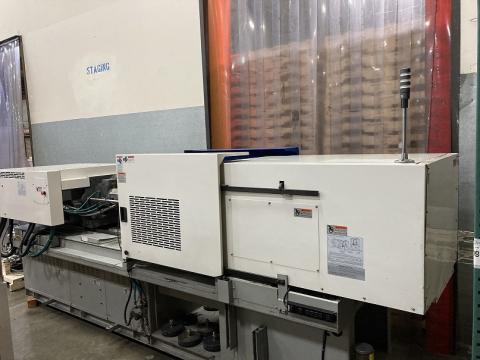

2004 Toyo - 150 Ton

2004 Toyo

150 Ton | 6.7 oz

General Specifications

Year2004
Brand Toyo
Tonnage150 Ton
Shot Size6.7 oz.
Region
  • USA
  • North America
Model NumberSi-150-II
Typehorizontal
Machine Notes

Air Drive Shut-Off Nozzle, High Pressure Injection, Wear Resistant Screw and Barrel, High Temperature use Heater Bands 842 degree Fahrenheit, Air Blow, 3 Port Pneumatic Valve for Air Blow, Air Core Pull, Hydraulic Core Pull, Mold Temperature Indication, Heat Insulating Plate for Mold, Interface for Vacuum System, Interface for Valve Gate, Interface for Conveyor Start, Interface for Mold Clamp System, Injection Compression Software

Technical Specifications

Clamp

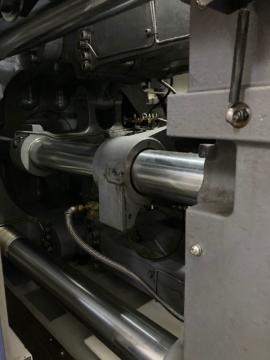

  • Double Toggle Electric
Tie Bar Distance18.11 inches  x  18.11 inches

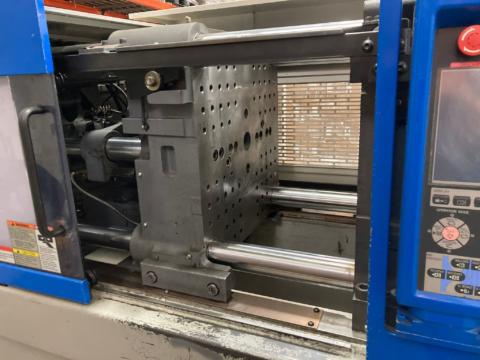

Platen Size 25.70 inchesx  25.70 inches
Daylight Min5.91 inches
Daylight Max37.44 inches 21.7" Max Mold Height
Core Pull Sequences Yes

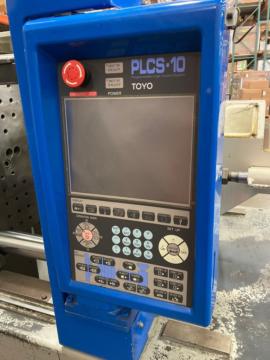

Types of ControlsPLCS 10
Voltage208
Dimensions 16 ftx 3.9 ftx 5.5 ft

Condition

Overall ConditionExcellent
Barrel & ScrewExcellent
Material RunPP/PS
