2005 Krauss-Maffei - 500 Ton

2005 Krauss-Maffei

500 Ton | 66 oz

General Specifications

Year2005
Brand Krauss-Maffei
Tonnage500 Ton
Shot Size66 oz.
Region
  • USA
  • North America
Model Number420-3500 Df
Typehorizontal
Options & Upgrades2-platen, Core Pull, Robot Interface, Vented barrel, the rails and shoes on the barrel are brand new, the rails and shoes on the platen are brand new, shut off nozzle, internal hot runner controller

Technical Specifications

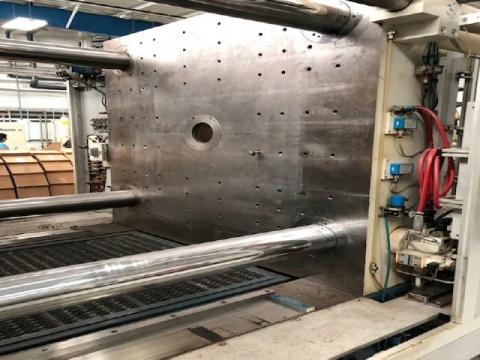

Clamp
  • 2-Platen
Tie Bar Distance55" inches  x  49" inches
Platen Size 78.5" inches 1000 ton Platen Size x  75.5" inches 1000 ton Platen Size
Daylight Min27.56" inches
Daylight Max76" inches
Core Pull Sequences Yes
Types of ControlsMC4
Voltage480
Dimensions 28.33' ftx 10.17' ftx 8.33' ft

Condition

Overall ConditionVery Good
Barrel & ScrewExcellent
Hours37,000
Material RunPP
