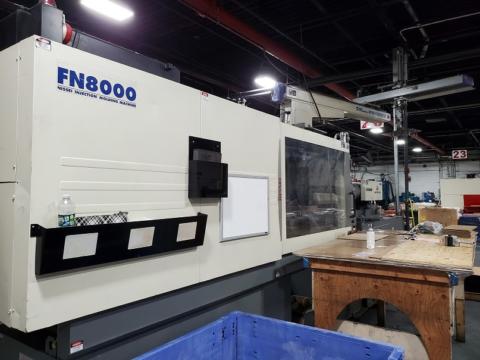

![2005 500 ton Nissei 68 oz. FN8000](https://elitemachinerysystems.com/public/assets/uploads/injection-molding/_AUTOx360_fit_center-center_75_none/2005Nissei500tonClampSide.jpg)

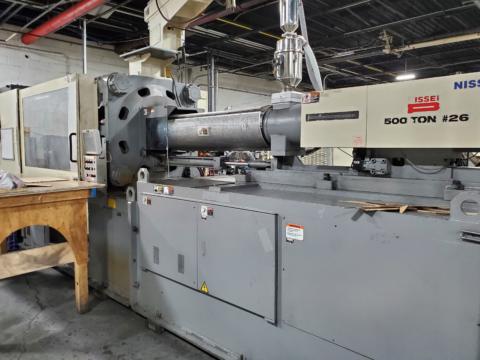

![2005 500 ton Nissei 68 oz. FN8000](https://elitemachinerysystems.com/public/assets/uploads/injection-molding/_AUTOx360_fit_center-center_75_none/2005Nissei500tonInjSide_201118_164131.jpg)
![2005 500 ton Nissei 68 oz. FN8000](https://elitemachinerysystems.com/public/assets/uploads/injection-molding/_AUTOx360_fit_center-center_75_none/Inside-control-cabionet-2005-FN8000-Nissei-overall.jpg)

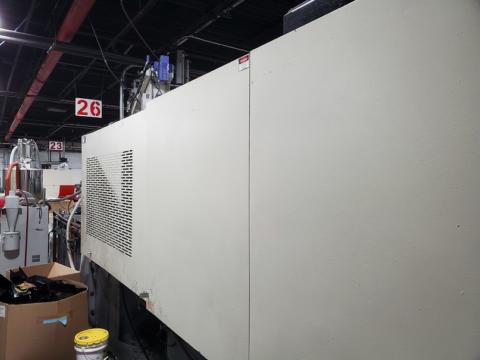

![2005 500 ton Nissei 68 oz. FN8000](https://elitemachinerysystems.com/public/assets/uploads/injection-molding/_AUTOx360_fit_center-center_75_none/2005Nissei500tonClampBackSide.jpg)
Sold
General Specifications
Year | 2005 |
Brand | Nissei |
Tonnage | 500 Ton (FN8000) |
Shot Size | 68 oz. |
Region |
|
Model Number | FN8000 |
Type | horizontal |
Machine Notes | Star NPW-1200G Robot is also available with the machine |
Technical Specifications
Clamp |
|
Tie Bar Distance | 32.3 inches x 32.2 inches |
Platen Size | 46.9 inches x 46.9 inches |
Daylight Min | 14.8 inches |
Daylight Max | 55.1 inches |
Core Pull Sequences | Yes Stationary Platen |
Types of Controls | TACT |
Voltage | 460 |
Dimensions | 28.36 ft x 6.24 ft x 8.47 ft |
Condition
Overall Condition | Very Good |
Barrel & Screw | Very Good |
Hours | 35,317 |
Material Run | ABS, HIPS, PC, PP Acrylic |
