Sold
General Specifications
Year | 2013 |
Brand | Boy |
Tonnage | 35 Ton (38.5 US Ton) |
Shot Size | 1.38 PS oz. |
Region |
|
Model Number | 35 EVV |
Type | vertical |
Options & Upgrades | Vertical Clamp with Vertical Injection |
Technical Specifications

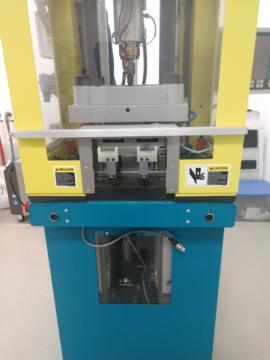

Clamp |
|
Tie Bar Distance | 11" inches x 10" inches |
Platen Size | 16.75" inches x 15.75" inches |
Daylight Min | 7.87" inches |
Daylight Max | 19.68" inches |
Core Pull Sequences | No |

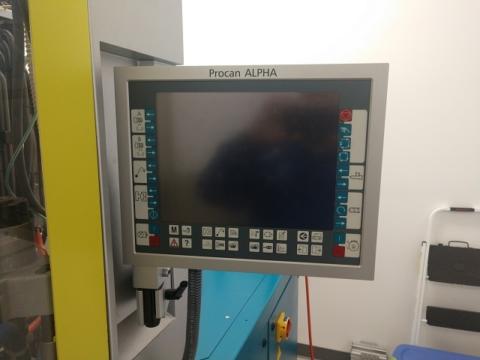

Types of Controls | Procan Alpha |
Voltage | 440 |
Dimensions | 6.72' ft x 2.63' ft x 9.3' ft |
Condition
Overall Condition | Like New |
Barrel & Screw | Like New |
Hours | 1,602 |
Material Run | GLS Versalov |
