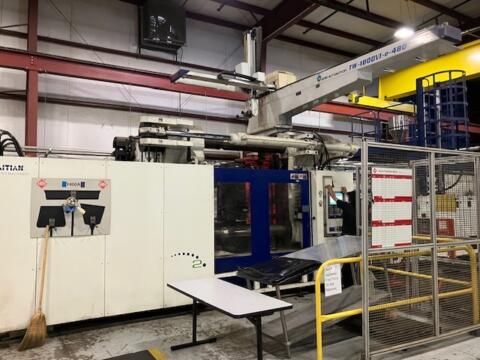

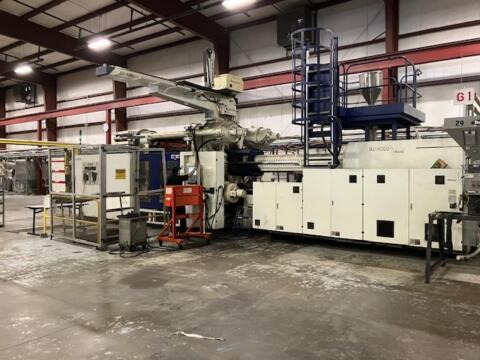

2016 Haitian
1400 Ton | 357 oz
General Specifications
| Year | 2016 |
| Brand | Haitian |
| Tonnage | 1400 Ton |
| Shot Size | 357 oz. |
| Region |
|
| Model Number | JU14000 |
| Type | horizontal |
Technical Specifications
| Clamp |
|
| Tie Bar Distance | 57.4 inches x 53.5 inches |
| Platen Size | 81.6 inches x 77.6 inches |
| Daylight Min | 27.5 inches |
| Daylight Max | 120 inches 57.4" Maximum Mold Height |
| Core Pull Sequences | Yes Both Platens |

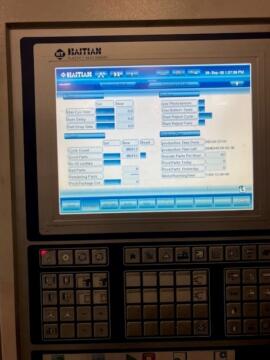

| Types of Controls | KEBA Controls |
| Voltage | 460 |
| Dimensions | 41.99 ft x 13.12 ft x 14.76 ft |
Condition
| Overall Condition | Excellent |
| Barrel & Screw | Excellent |
| Hours | 13,000 |
| Material Run | PS |
