2017 Krauss-Maffei
2200 Ton | 542 oz
General Specifications
| Year | 2017 |
| Brand | Krauss-Maffei |
| Tonnage | 2200 Ton |
| Shot Size | 542 oz. |
| Region |
|
| Model Number | 2000-33000 MX |
| Type | horizontal |
| Options & Upgrades | See Machine Notes |
| Machine Notes | Available August 2026 Highly Optioned Machine. Click the link below to access the machine's original order sheet. Click here to apply for financing or contact us for further information. |
Technical Specifications
| Clamp |
|
| Tie Bar Distance | 73.62 inches x 63.78 inches Retractable Tie Bar Operator Side |
| Platen Size | 104.3" inches x 94.49 inches |
| Daylight Min | 23.62 inches |
| Daylight Max | 133.86 inches 66.93" Maximum Mold Thickness |
| Core Pull Sequences | Yes |
| Types of Controls | MC 6 |
| Voltage | 460 |
| Dimensions | 46.49 x 13.25 x 9.61 |
Condition
| Overall Condition | Excellent |
| Barrel & Screw | Excellent |

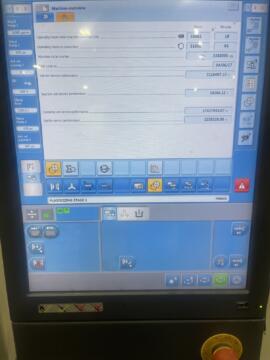

| Hours | 51,698 Hours |
| Condition Notes | Tie bar retraction system for tie bar on operator side, top. Drive cylinders of clamping unit with changed position (fixed on operator side bottom and non-op side top) The tie bar will be retracted in the direction of the injection unit. |
