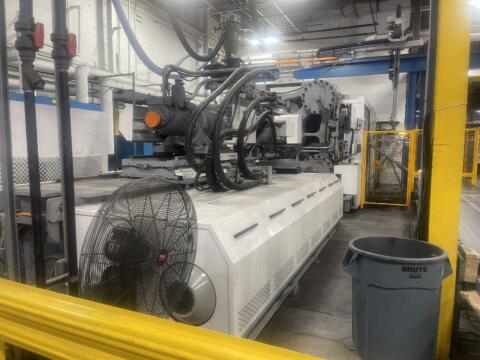

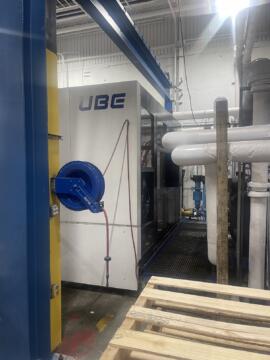

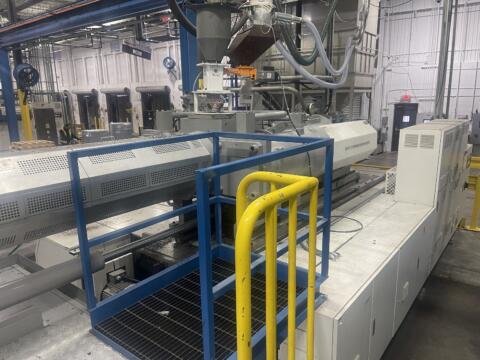

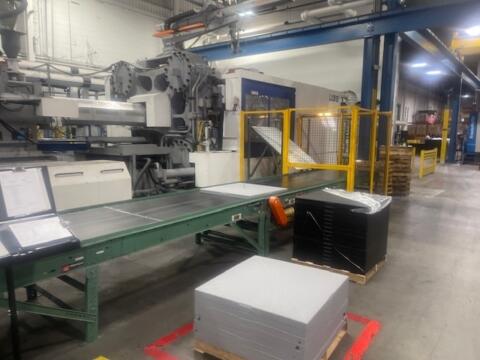

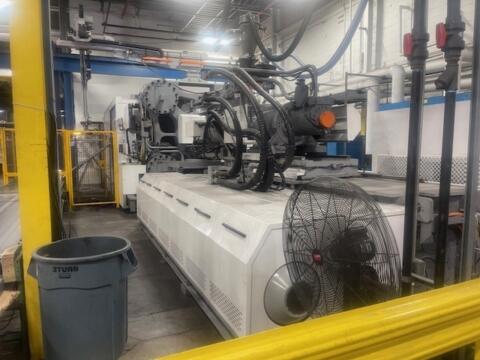

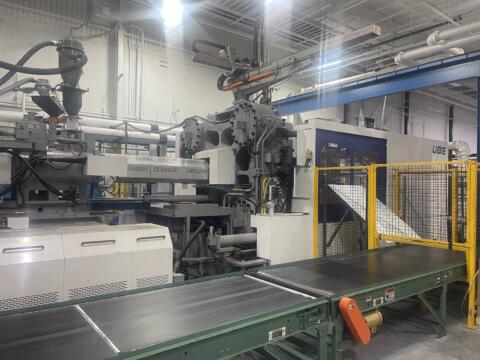

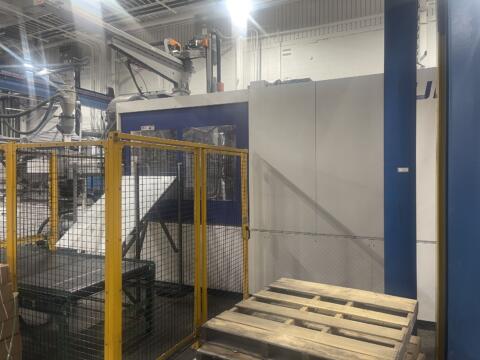

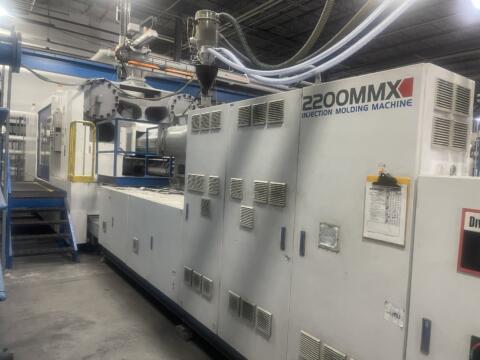

2021 UBE
2200 Ton | 427 oz
General Specifications
| Year | 2021 |
| Brand | UBE |
| Tonnage | 2200 Ton |
| Shot Size | 427 oz. |
| Region |
|
| Model Number | 2200MMX-470 |
| Type | horizontal |
| Machine Notes | Available March 2026 Hydraulic cores 2 on stationary 2 on moving, Hydraulic core decompression circuit, Air ejector 1 on stationary 1 on moving, EU70 magnetic clamper interface, UB Ultra barrier screw chrome plated hard facing 22:1, 6 hydraulic valve gates, 6” locating ring, Longer ejector rods, ANSI 2017, In mold ejector confirmation circuit, Mold water piping, Hydraulic oil temp controller, Programmable output options (6), Hold pressure switch control includes external signal if needed, EU67 50 pin robot interface, In-mold ejector circuit. Payments starting at. $7,871.00 per month Including Delivery and Installation. $12,964 per month Click here to apply for financing. or contact us for further information. |
Technical Specifications
| Clamp |
|
| Tie Bar Distance | 72.83 inches x 64.96 inches |
| Platen Size | 98.42 inches x 88.58 inches |
| Daylight Min | 29.53 inches 98,42" Clamp Stroke |
| Daylight Max | 127.95 inches 59.05" Maximum Mold Height |
| Core Pull Sequences | Yes |

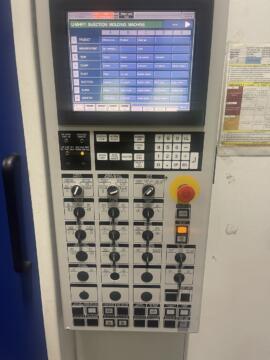

| Types of Controls | Mac IX |
| Voltage | 460 |
| Dimensions | 46.8 ft x 13.2 ft x 11.1 ft |
Condition
| Overall Condition | Excellent |
| Barrel & Screw | Excellent |
