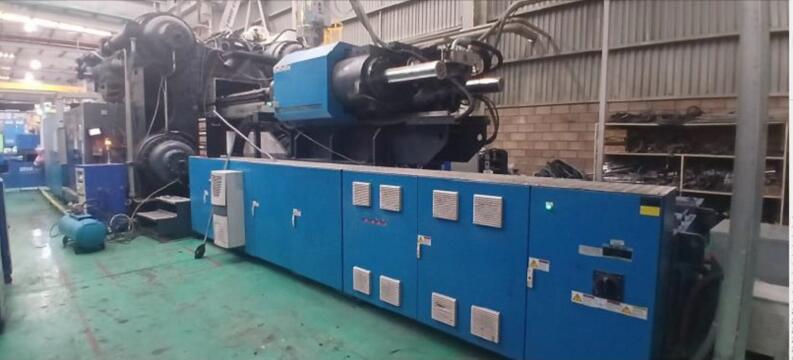

2022 LS Mtron
3640 Ton | 575 oz
General Specifications
| Year | 2022 |
| Brand | LS Mtron |
| Tonnage | 3640 Ton |
| Shot Size | 575 oz. |
| Region |
|
| Model Number | 3300 The One |
| Type | horizontal |
| Options & Upgrades | Includes a Robot |
Technical Specifications
| Clamp |
|
| Tie Bar Distance | 89.4 inches x 71.3 inches |
| Platen Size | 122.8 inches x 106.2 inches |
| Daylight Min | 35.4 inches |
| Daylight Max | 161.5 inches 82.7" Maximum Mold Height |
| Core Pull Sequences | Yes |
| Types of Controls | Keba Controls |
| Voltage | 460 |
| Dimensions | 49.2 ft x 16.4 ft x 13.5 ft |
Condition
| Overall Condition | Excellent |
| Barrel & Screw | Excellent |
