2022 Krauss-Maffei
2200 Ton | 542 oz
General Specifications
| Year | 2022 |
| Brand | Krauss-Maffei |
| Tonnage | 2200 Ton |
| Shot Size | 542 oz. |
| Region |
|
| Model Number | 2000-33000 MX |
| Type | horizontal |
| Options & Upgrades | Machine price includes all of the electrical control cabinets components and cables updated. All machines will be recertified by Krauss-Maffei and all parts and future service will come with a Krauss-Maffei warranty. |
| Machine Notes | Available April 2026 Highly Optioned Machine. Click the link below to access the machine's original order sheet. Click here to apply for financing or contact us for further information. |
Technical Specifications
| Clamp |
|
| Tie Bar Distance | 73.62 inches x 63.78 inches |
| Platen Size | 104.3 inches x 94.49 inches |
| Daylight Min | 23.62 inches |
| Daylight Max | 133.86 inches 66.93" Maximum Mold Height |
| Core Pull Sequences | Yes |
| Types of Controls | MC 6 |
| Voltage | 460 |
| Dimensions | 46.49 x 13.25 x 9.61 |
Condition
| Overall Condition | Excellent |
| Barrel & Screw | Excellent |

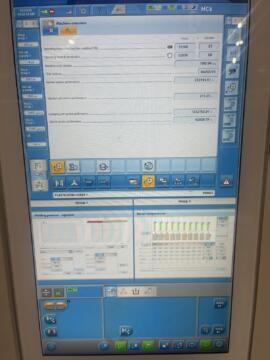

| Hours | Only 12,939 Hours |
| Condition Notes | The machine includes the preparation for retrofitting a tie bar retraction system on the operator side for a completely pulled tie bar (ZE59.201/G01) consisting of: Preparation of the fixed plate including guide bushing, Position of the drive cylinders of the clamping unit is switched (OS bottom; NOS top) Hydraulic blocks for controlling the tie bar retraction system Piping interface to "Motor and clamping elements" Not included: The machine would require the Carrier including the spindle, hydro motor and support, Column head for tie bar retraction system, Clamping elements, Electrical preparation. |
