General Specifications
| Year | 2009 |
| Brand | Cincinnati Electric |
| Tonnage | 220 Ton |
| Shot Size | 17.4 oz. |
| Region |
|
| Model Number | NT 220 |
| Type | horizontal |
| Options & Upgrades | Automatic feed throat temperature control, shutoff nozzle for gas assist, core pull, 2 stage air eject, robot interface, 700 degree ceramic heater bands. Includes a rebuilt spare 50mm screw, barrel, and screw tip assembly along with some misc. parts. |
Technical Specifications
| Clamp |
|
| Tie Bar Distance | 23.6 inches x 23.6 inches |
| Platen Size | 32.8 inches x 32.8 inches |
| Daylight Max | 39.37 inches 19.7' Maximum Daylight |
| Core Pull Sequences | Yes |

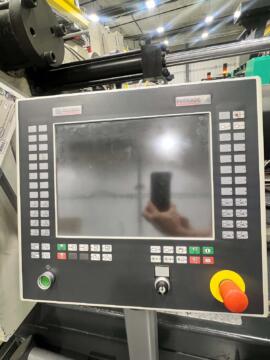

| Types of Controls | Mosaic |
| Voltage | 220 |
Condition
| Overall Condition | Very Good |
| Barrel & Screw | Excellent |
| Hours | 53,500 |
