2013 Cincinnati Roboshot
250 Ton Tonnage can be increased to 300 ton with a software update | 4 oz. shot can be upsized to a 5.17 oz., 6.36 oz., 9.06 oz., 10.75 oz. or a 14.27 oz. with a screw barrel change oz
General Specifications
| Year | 2013 |
| Brand | Cincinnati Roboshot |
| Tonnage | 250 Ton (Tonnage can be increased to 300 ton with a software update) |
| Shot Size | 4 oz. shot can be upsized to a 5.17 oz., 6.36 oz., 9.06 oz., 10.75 oz. or a 14.27 oz. with a screw barrel change oz. |
| Region |
|
| Model Number | S-2000 i 250B |
| Type | horizontal |

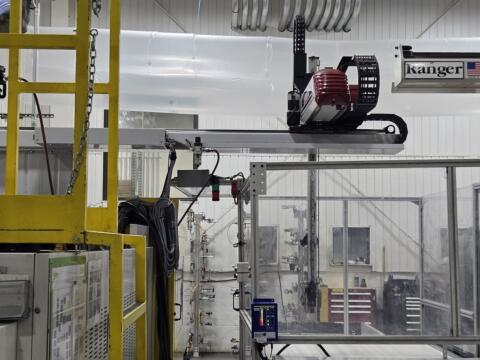

| Options & Upgrades | Includes a 2013 Wittmann W821 Robot |
| Machine Notes | Tonnage can be increased to 300 ton with a software update, 4 oz. shot can be increased to a 5.17 oz., 6.36 oz., 9.06 oz., 10.75 oz. or a 14.27 oz. with a screw barrel change. |
Technical Specifications
| Clamp |
|
| Tie Bar Distance | 27.95 inches x 24.99 inches |
| Platen Size | 40.55 inches x 37.80 inches |
| Daylight Min | 11.81 inches |
| Types of Controls | Fanuc |
| Voltage | 200 |
| Dimensions | 21.48 ft x 5.69 ft x 6.37 ft |
Condition
| Overall Condition | Very Good |
| Barrel & Screw | Excellent |
| Hours | 39,609 |
| Material Run | PC |
