General Specifications
| Year | 1999 |
| Brand | Cincinnati Milacron |
| Tonnage | 3000 Ton |
| Shot Size | 362 oz. |
| Region |
|
| Model Number | Maxima ML3000-362 |
| Type | horizontal |
| Options & Upgrades | 12 Valve Gates, 48 Hot Runner Controls, Dual Core Pull Both Platens, 5 core side and cavity side thermolators |

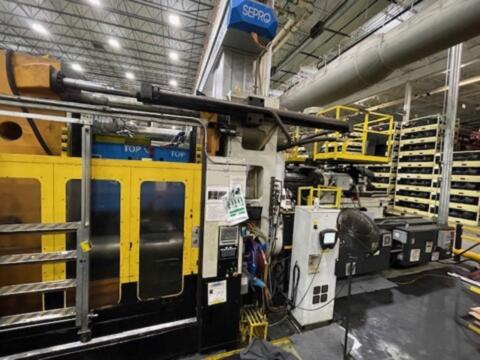

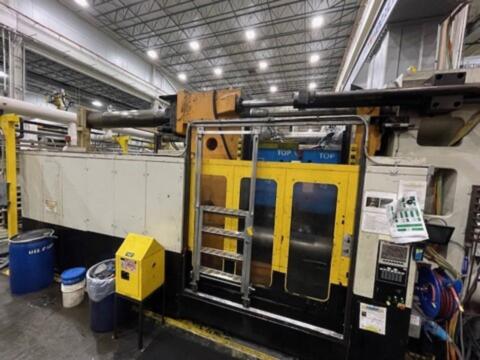

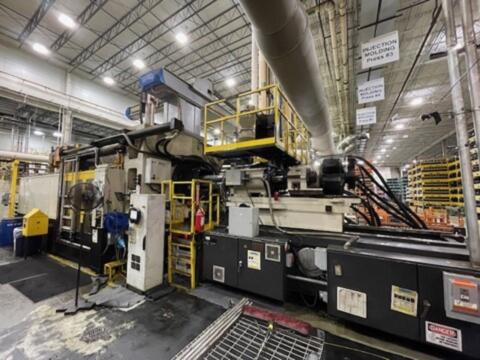

| Machine Notes | 3 Machines Available all under power with a 362 oz. a 540 oz. and a 592 oz. |
Technical Specifications
| Clamp |
|
| Tie Bar Distance | 82.7 inches x 66.9 inches |
| Platen Size | 120.1 inches x 100.4 inches |
| Daylight Min | 23.6 inches |
| Daylight Max | 145.7 inches |
| Core Pull Sequences | Yes Dual Core Pull Both Platens |
| Types of Controls | Camac 486 |
| Voltage | 460 |
Condition
| Overall Condition | Good |
| Barrel & Screw | Very Good |
