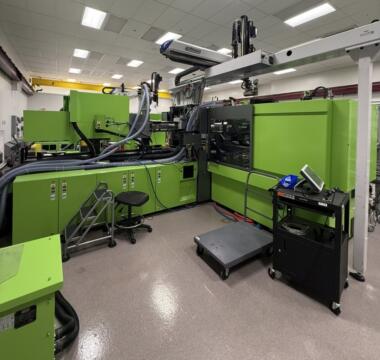

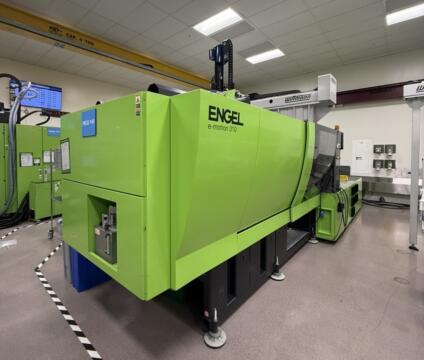

2017 Engel 2 Color L-Configuration e-motion All-electric

310 Ton | 3.82/3.82 oz

Request Quote

General Specifications

Year 2017
Brand Engel 2 Color L-Configuration e-motion All-electric
Tonnage 310 Ton
Shot Size 3.82/3.82 oz.
Region
  • USA
  • North America
Model Number e-motion All-electric 310H/310L/310 T WP COMBI US
Type horizontal
Options & Upgrades 2 color with a 43.31" Rotary Table 180 degrees reciprocating motion
Machine Notes

43.31" Rotary Table 2-Station 180 degrees reciprocating motion, e-motion All-electric Premium Execution with direct drive, mold height increased by 200 mm, hydraulic corepull on moving and stationary platen, Hydraulic unit size S1 with Ecodrive, 40 zone mold heating control, pneumatic valve gate control 2 fold, M3 barrel Bi-metallic barrel, ceramic heater bands, ENGEL e-flomo mold water temperature closed loop control system, Extension interface RJG eDART, Interface to systems for measuring and process, interface for RJG eDART, 4 water flow control circuits, Interface for robot/automation Euromap 67 / AN-146, Interface for freely programmable dry contacts, Four circuit rotary union. Eight ports, Autoprotect-precision mold protection, Autoprotect-injection monitoring.

Technical Specifications

Clamp
Tie Bar Distance 30.7 inches  x  30.7 inches 43.31" Rotary Table
Platen Size 43.7 inches x  43.7 inches Wide Platen
Daylight Min 5.91 inches
Daylight Max 47.2" inches 23.6 Maximum Mold Height
Types of Controls CC300
Voltage 480
Dimensions 24.46 ft x 15.76 ft x 8.09 ft

Condition

Overall Condition Excellent
Barrel & Screw Excellent
Hours 47,000
Condition Notes Excellent Condition Ran Medical Products
