2017 Krauss-Maffei Under 20,000 Hours
3500 Ton | 1145 oz
General Specifications
| Year | 2017 |
| Brand | Krauss-Maffei Under 20,000 Hours |
| Tonnage | 3500 Ton |
| Shot Size | 1145 oz. |
| Region |
|
| Model Number | KM3200-75000 MX |
| Type | horizontal |
| Options & Upgrades | Includes Krauss-Maffeo Robot, Cores on Fixed and Movable Platen, Hydraulic Nozzle Shutoff , Includes all auxiliary attached to the machine |
Technical Specifications
| Clamp |
|
| Tie Bar Distance | 89.37 inches x 71.65 inches |
| Platen Size | 127.56 inches x 110.63 inches |
| Daylight Min | 43.31 inches |
| Daylight Max | 165.31 inches Maximum Mold Height 78.74" |
| Core Pull Sequences | Yes Cores on Fixed and Movable Platen |
| Types of Controls | MC 6 |
| Voltage | 460 |
| Dimensions | 67.49 ft x 17.09 ft x 13.35 ft |
Condition
| Overall Condition | Very Good |
| Barrel & Screw | Excellent |

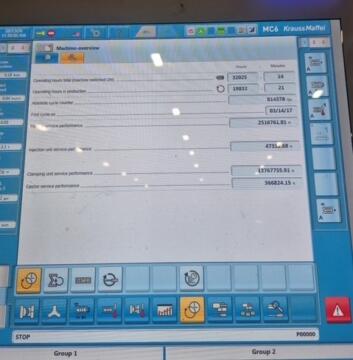

| Hours | Under 20,000 Hours |
| Material Run | Injection unit can be downsized to 1010 ounce or a 882 ounce |
