General Specifications
| Year | 1995 |
| Brand | UBE |
| Tonnage | 4000 Ton |
| Shot Size | 435 oz. |
| Region |
|
| Model Number | 4000USW-450IMM |
| Type | horizontal |

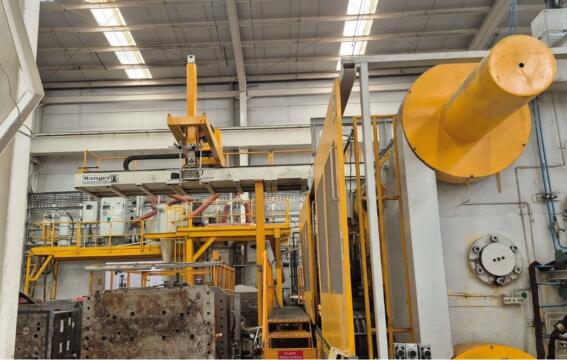

| Options & Upgrades | Includes a 5 Axis Ranger Robot |

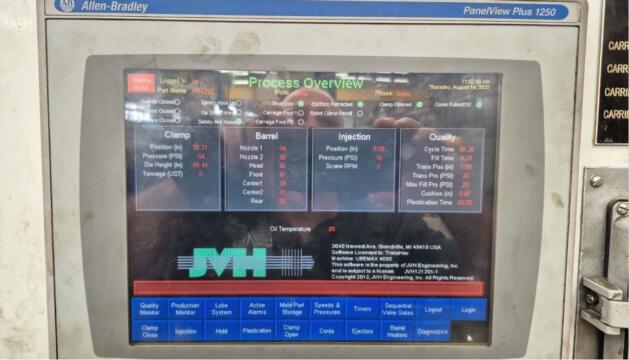

| Machine Notes | Control updated to Allen Bradley Panel View Plus 1250, 3 Cores on moving platen and 2 on stationary platen, magnetic platens |
Technical Specifications

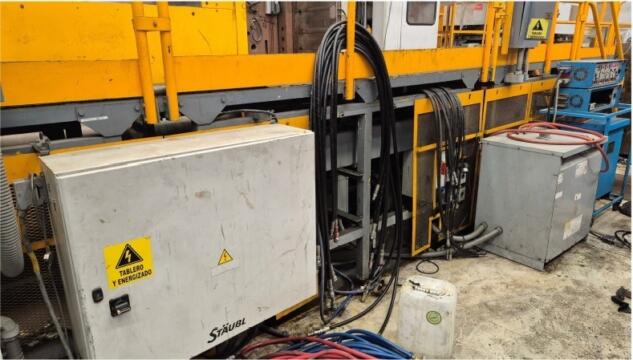

| Clamp |
|
| Tie Bar Distance | 84 inches x 74 inches |
| Platen Size | 125 inches x 110 inches |
| Daylight Min | 48" inches 35.44" with spacers |
| Daylight Max | 164.61 inches 86.6" Stroke |
| Core Pull Sequences | Yes 3 on moving platen 2 on stationary |

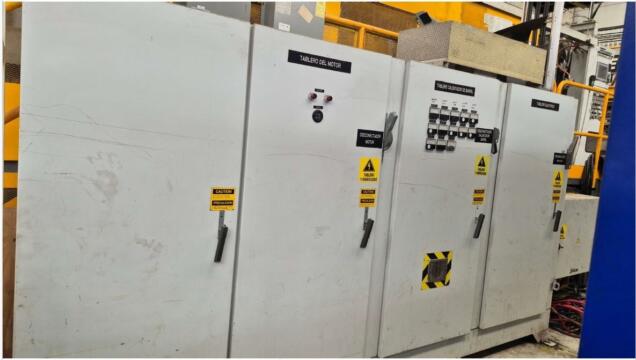

| Types of Controls | Allen Bradley Panel View Plus 1250 |
| Voltage | 460 |
Condition
| Overall Condition | Fair |
| Barrel & Screw | Fair |

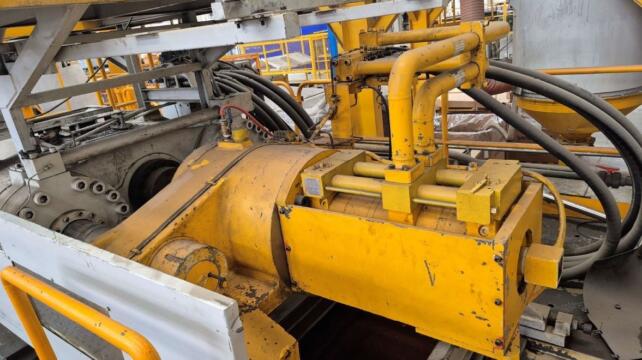

| Condition Notes | Toggle in very good condition, Magnetic Platens in very good condition, Needs new pressure transducer for clamp tonnage, some heater bands need to be replaced, needs hydraulic motor for screw rotation rebuilt, Still under power |
