2019 Engel Vertical/Vertical Cleanroom ISO class 7
50 Ton | 0.84 oz
General Specifications
| Year | 2019 |
| Brand | Engel Vertical/Vertical Cleanroom ISO class 7 |
| Tonnage | 50 Ton |
| Shot Size | 0.84 oz. |
| Region |
|
| Model Number | e-insert 50V/50 single US |
| Type | horizontal |

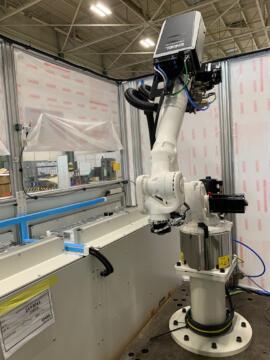

| Options & Upgrades | Includes an Engel KUKA easix KR20 (Cybertech) Clean Room Robot, Payload: 20 kg, Additional weight (robot arm): 10 kg, Working range: 1.810 mm, Repeat accuracy: +/- 0,04 mm, Cleanroom package, Brushless AC servo drives 6 axis, 30% less energy consumption |
| Machine Notes | Hydraulic package ECODRIVE, FDA approved lubrication system for food safe lubricants, Executed to ENGEL Medical Standard, Cleanroom ISO class 7, Executed for PHSR inspection, mold height increased by 100 mm, single pneumatic corepull on moving platen, Air Blow stationary platen, 4 zone mold heating control, pneumatic valve gate control, 4 fold, light guard in front of mold area, Hardened screw, M9 barrel Bi-metallic (Ni-basis with tungsten carbide WC reinforcement), pneumatic shut off nozzle, ceramic heater bands, ,1st language: English, 2nd language: French |
Technical Specifications
| Clamp |
|
| Platen Size | 37.0 inches x 15.7 inches |
| Daylight Min | 15.4 inches |
| Daylight Max | 28.3 inches |
| Core Pull Sequences | Yes |
| Types of Controls | CC300 |
| Voltage | 480 |
Condition
| Overall Condition | Like New |
| Barrel & Screw | Like New |
| Hours | Zero Production Hours |
| Condition Notes | Never put into production |
