General Specifications
| Year | 2008 |
| Brand | Engel |
| Tonnage | 550 Ton |
| Shot Size | 70 mm oz. |
| Region |
|
| Model Number | Duo 2050/550 US |
| Type | horizontal |
| Options & Upgrades | 70mm screw, core pulls, pneumatic valve gates, air blow, hot runner controls, Euromap 67 robot plug, , 2 platen with 4 traverse cylinders, 21,497 hours. |
Technical Specifications
| Clamp |
|
| Tie Bar Distance | 35.8 inches x 32.7 inches |

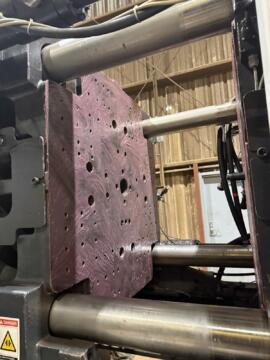

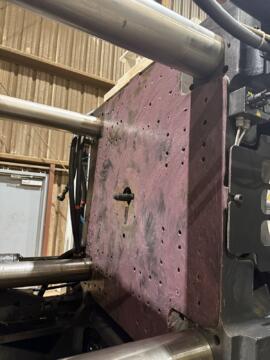

| Platen Size | 50 inches x 49.6 inches |
| Daylight Min | 13.8 inches |
| Daylight Max | 65 inches 35.4" Maximum Mold Height |
| Core Pull Sequences | Yes |
| Types of Controls | CC200 AO2 |
| Dimensions | 24.6 ft x 8.17 ft x 8.19 ft |
Condition
| Overall Condition | Excellent |
| Barrel & Screw | Excellent |
| Hours | 21,497 |
