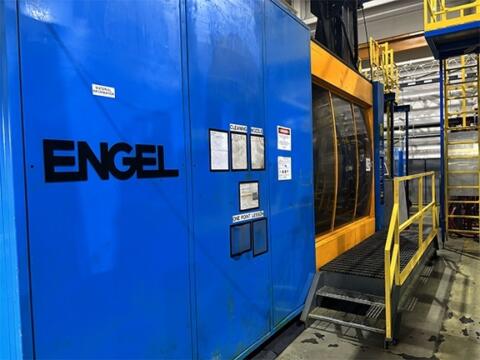

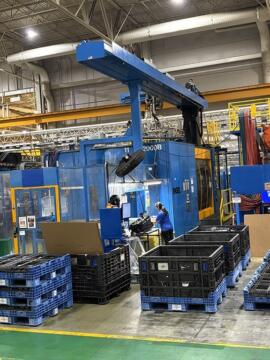

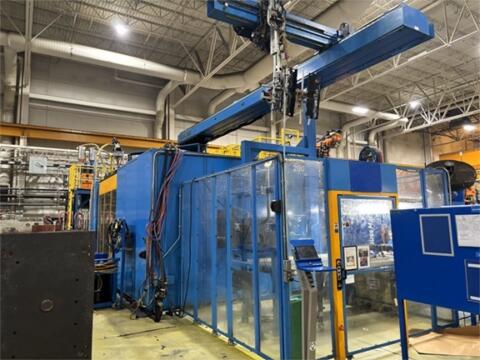

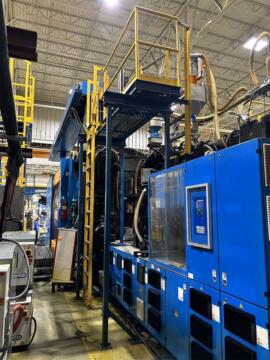

2002 Engel 2 Color
2000 Ton | 237.04/24.85 oz
General Specifications
| Year | 2002 |
| Brand | Engel 2 Color |
| Tonnage | 2000 Ton |
| Shot Size | 237.04/24.85 oz. |
| Region |
|
| Model Number | 2000B 16505/1350W/2000 DUO-2F |
| Type | horizontal |

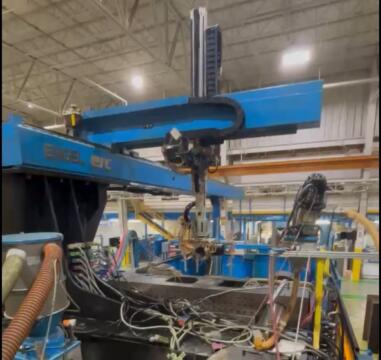

| Options & Upgrades | 2-Color, Core Pull 4 Fixed Platen, 4 Movable Platen, Engel ERC Robot Included |
Technical Specifications
| Clamp |
|
| Tie Bar Distance | 78.74 inches x 44.09 inches |
| Platen Size | 114.17 inches x 98.43 inches |
| Daylight Min | 31.50 inches |
| Daylight Max | 149.61 inches 7087 Maximum Mold Height |
| Core Pull Sequences | Yes 4 Fixed Platen 4 Movable Platen |
Condition
| Overall Condition | Very Good |
| Barrel & Screw | Excellent |
